Multi Parameter Checking Fixture
Connecting Rod Gauge
Connecting Rod Gauge
Connecting Rod Gauge

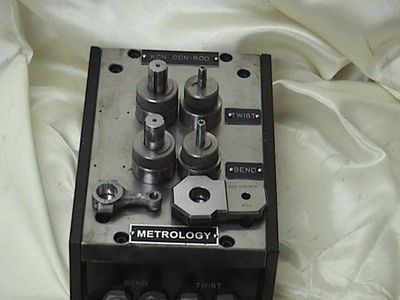

- This Fixture checks Bend , Twist , Center Distance between Big End & Small End , Big End Diameter & Small End Diameter.
- This is Designed & Manufactured for Leyland Connecting Rod.
Connecting Rod Gauge
Connecting Rod Gauge
Connecting Rod Gauge

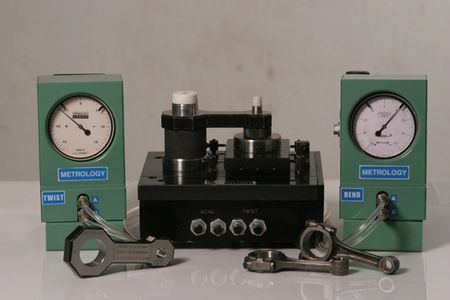

- This Fixture checks Bend , Twist , Center Distance between Big End & Small End , Big End Diameter & Small End Diameter.
- This is Designed & manufactured for Maruti 800 Connecting Rod.
Connecting Rod Gauge
Centre Distance Checking Gauge
Centre Distance Checking Gauge

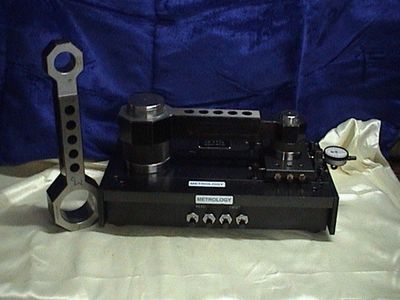

- To check Bend & Twist of Connecting Rod.
- This is the smallest connecting Rod .
- Refrigerration Connecting Rod.
Centre Distance Checking Gauge
Centre Distance Checking Gauge
Centre Distance Checking Gauge

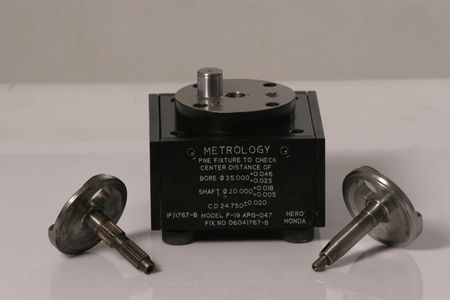

- This Fixture Checks Centre Distance between pin hole & Bearing Shaft of a Crank Shaft.
- In a same fixture Diameter along with Centre Distance can be checked.
Cylinder Block Gauge
Piston Checking System
Cylinder Block Gauge
- Actual Site Photo Taken at Mahindra Two Wheelers , Pithampur Plant.
- Parameters Checking
- Diameters at four levels
- Total Height
- Grade on basis of Height
- Marking of the Grade along with Date & time & Shift.
Cylinder Block Gauge
Piston Checking System
Cylinder Block Gauge
- Cylinder Block having long length hence check at four places in one go.
- The no. of position to check will depend upon the Diameter of Bore , Length of Bore , Accuracy & Final operations performed.
- The same principle can be applied for inner diameter.
Piston Checking System
Piston Checking System
Piston Checking System
- Contact type Piston Checking system checks 14 parameters
- 3 Grove Dias, 3 outer dias, 4 Pin bore , height, 3 Grove width .
- The system is PC based which displays the readings , stores it & analyse it .
- Full reports along with analysis.
