Customized Gauging Solution
Multiparameter checking Gauge
Multiparameter checking Gauge
Multiparameter checking Gauge

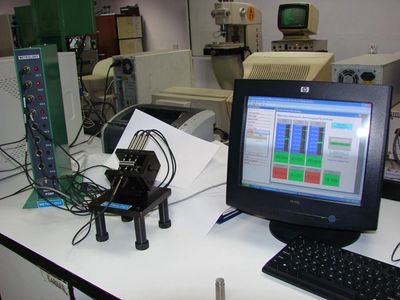

- Special Pneumatic Gauge to check Inner Diameter , Outer Diameter , Total Thickness & Depth .
- Ejector Mechanism used to easy load & unload.
- Display can be PC based or Column based.
- Used as a Final Inspection Station.
Taper Roller Checking Gauge
Multiparameter checking Gauge
Multiparameter checking Gauge

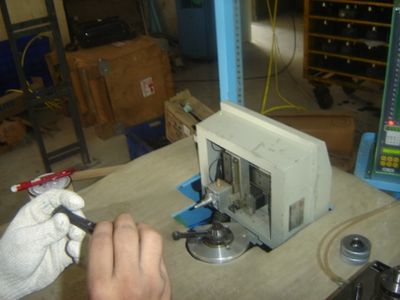

- Special Taper Rollers of the Taper Roller bearing checking system checks the parameter
- Taper Diameters at Small end & Big end , Taper Angle & Crown.
- The system is PC based which displays the readings , stores it & analyse it .
- Full reports along with analysis.
- Live photo taken at National Bearing Corporation, Jaipur , India.
Con-Rod Auto Grading Machine
Gauging with Machine Interface
Gauging with Machine Interface

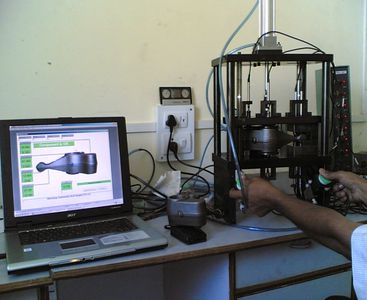

- Special Pneumatic machine to check Big End Diameter of a Connecting rod & Grading
- The Grade determined will be Punched on the connecting Rod
- Live photo at Hero Moto Crop Ltd. , Dharuhera Plant , India.
Gauging with Machine Interface
Gauging with Machine Interface
Gauging with Machine Interface

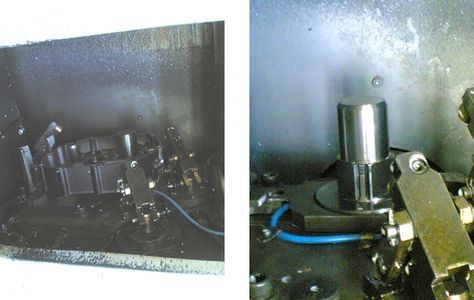

- Gauging element is incorporated in a machining fixture.
- When component is loaded for machining the diameter will be checked .
- The fixture is interfaced with machine so that if the component is reject the machine will unclamped the component.
Fixture to Check Thickness & Bend
Fixture to Check Thickness & Bend
Fixture to Check Thickness & Bend

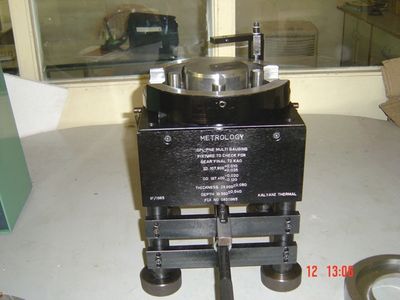

- Special Contact type Fixture to check thickness at 4 places & Bend of Component in single Go.
- This Fixture checks the forged component.
- The system is PC based which displays the readings , stores it & analyse it .
- Full reports along with analysis.
Air Cut off Unit.
Fixture to Check Thickness & Bend
Fixture to Check Thickness & Bend

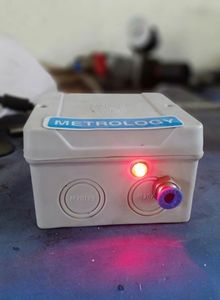

- Auto Air cut Off .
- This is universal unit.
