Display System

High Pressure Air Gauge Unit (Display)

High Pressure Air Electronic Column & Digital Display Unit

High Pressure Air Electronic Column & Digital Display Unit

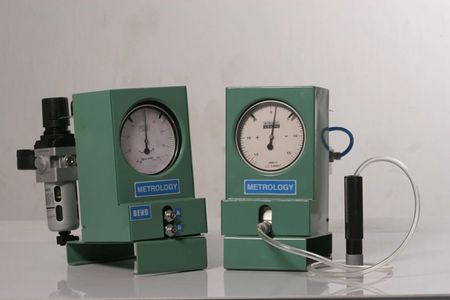

• Analog Air Gauge unit (Analog Display) works on Back Pressure Principle.
• Quick & Accurate Inspection.
• Very Accurate can measure upto 0.0005 mm.
• Single Channel & Double Channel.
• Different measuring range available +/- 0.020 mm , +/- 0.040 mm , +/- 0.080

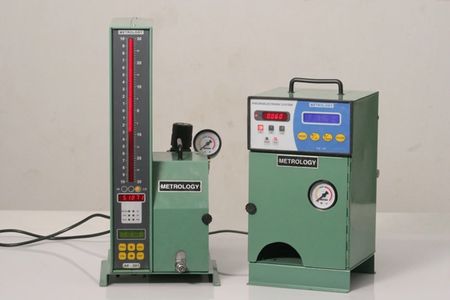

High Pressure Air Electronic Column & Digital Display Unit

High Pressure Air Electronic Column & Digital Display Unit

High Pressure Air Electronic Column & Digital Display Unit

• Micro-Processor Based Electronic Column & Digital unit for Air Gauge .
• Totally maintenance Free.
• Can measure upto 0.0001 mm.
• Can show actual size with Accept , Reject , Rework Coloured big LEDs .
• RS 232 , USB , Ether net Output available.
• Can be connected to PC for data collection along with SPC analysis.

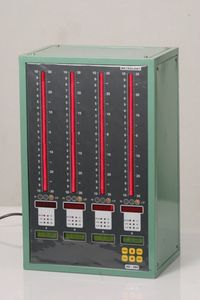

Four Channel Display

Four Channel Display

Four Channel Display

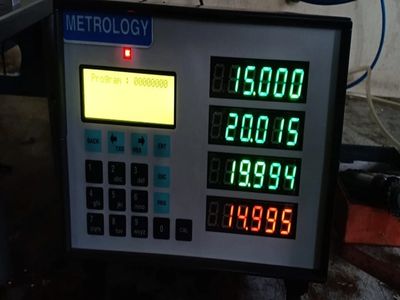

• Four channel display to display reading of same component at four levels or four different sizes in single window.

4 or 8 Channel LUC.

Four Channel Display

Four Channel Display



• Piezo or probe based 4 or 8 channel tri colourLED Display unit.
• Range +/-0.040 mm
• L.C. 0.001 mm
• Auto air cut off.
